Before proceeding to get the exposure of commercial RO plant manufacturer, firstly we need to the Process of water treatment. The process of moving a solvent from a low concentration to a high concentration via a semi-permeable membrane is referred to as osmosis. This process is reversed in reverse osmosis. Reverse osmosis (RO) is a method of water treatment that uses a semipermeable membrane to filter pollutants, excessive levels of minerals, big molecules, and dust particles from drinking water. A water purification system called RO water treatment is used to make water better for drinking, cleaning, cooking, and other crucial functions.

Compact STP Plant is going to discuss the commercial RO plant manufacturer in
detail. So, let’s get going….

The development of membrane technology led to the design and engineering of reverse osmosis modules. Since module design is usually individualized in accordance with membrane properties, it is first necessary to investigate membrane configuration. There is a big difference between different membrane designs (hollow fine fiber and flat sheet), as well as between different membrane chemistries (the most notable ones being cellulose acetate and thin film composite with polyamide barrier layer). Commercial RO plant manufacturers:

Key components of commercial reverse osmosis plant:

Parts of reverse osmosis systems use semipermeable membranes, a type of water
treatment technology, to remove organic contaminants from potable water. Reverse
osmosis is not only useful for water treatment systems but also for other purposes such as
food and beverage production, electricity and energy production, saltwater desalination, UV
water sterilization, etc. The key components of commercial RO plants which serves as a
basis for commercial RO plant manufacture are:

  1. Water supply connector: The reverse osmosis filter’s water source is connected to the property’s cold water supply by a water supply connector, also known as a feed water supply adaptor. Systems from NETSOL RO come with an adaptor for various supply valves. To best suit the plumbing arrangement, the manufacturer may offer a variety of fittings, valves, and saddle valves.
  2. Pressure regulator: A pressure regulating valve is utilized to shield the pre-filter housings from excessive pressure and water hammer. The maximum pressure rating for standard housings is generally 75 PSI, especially for transparent housings constructed of Styrene Acrylonitrile (SAN) plastic.
  3. Sediment pre-filter: The sediment cartridge removes grit, sand, precipitated mineral particles, insoluble iron oxide, and other material that might obstruct the reverse osmosis membrane surface or obstruct the drain flow restrictor, reducing water output. The majority of NETSOL RO systems have sediment filters that can filter out particles as fine as 5 microns. According to NETSOL, this filter should be changed at least once every six months. Replace RO sediment filters every three months.
  4. Carbon filter for chlorine removal: Public water supplies are chlorinated by city services to stop the growth of pathogenic viruses, bacteria, and other microbes that can result in life- threatening disease or even death. On the other side, these chlorinated water sources have the potential to damage TFC membranes over time.
  5. Auto shut-off valve: When the tank is full, this valve shuts off the drain flow to conserve water. The reverse osmosis membrane’s water supply is primarily managed by the ASO valve. The ASO valve stops the water supply to the membrane when the pressurized storage tank reaches two-thirds of the feed pressure and waits until the tank is emptied to one-third of the feed pressure before starting the water flow again.
  6. Reverse osmosis membrane: The system’s main labor-intensive component is the RO membrane. The amount of dissolved solids (minerals, salts, and metals), microbes, and organic materials that are removed from water is above 96%. Water is split into two streams by the membrane. Water filtered by the membrane is sent to storage.
  7. Check valve: The check valve stops pressured filtered water in the storage tank from running back and damaging the RO membrane when the ASO valve shuts off the feed water pressure to the membrane.
  8. Pressurized water storage tank: In a RO system, the pressure tank stores filtered water from the membrane permeate and delivers water under pressure when the drinking water faucet is switched on.
  9. Drinking water faucet: A drinking water faucet that does not have an air gap and just dispenses filtered water is frequently included with RO systems.

Construction of Reverse Osmosis Membranes

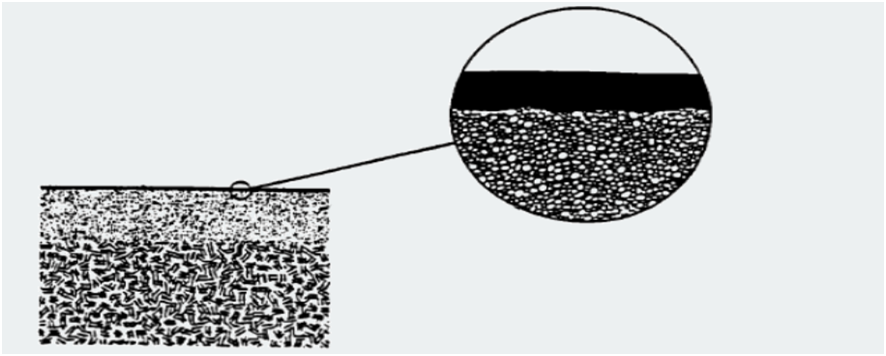

The majority of RO membranes in use today by commercial RO plant manufacturer, are generally made of a thin film composite membrane with three layers: a polyester support web, a microporous polysulfide interlayer, and an ultra-thin polyamide barrier layer on top.

The packing of thin film composite membranes is done in a spiral wrapped pattern. Depending on the element’s kind and diameter, this element can have one to thirty sheets. In membrane systems, the components are arranged in a pressure vessel in series. The feed for the second element is made from the previous element’s concentration, and so forth. The combined total permeate exits the pressure vessel at one side after being linked to the permeate tubes by interconnectors (also known as couplers).

A perforated permeate pipe is wrapped in membranes. Only the aperture facing the permeate pipe separates the two membrane sheets that are bonded together on three sides. From one side of the membrane surface to the other, feed water flows. The water in the vessel is under high pressure, which causes some of the water to permeate the membrane. This permeate water can only exit the PV through the permeate pipe, while the remaining, more concentrated water exits on the other side of the membrane by simply flowing over the sheet.

The membrane that best suits the demands of the client and the project will be designed and chosen by Netsol Water. The Netsol uses RO technology to offer comprehensive, sustainable solutions while combining the required pre- and post- treatment.

How to choose best commercial RO plant manufacturer:

For any other support, inquiries, or product purchases, call on +91-9650608473 or email at enquiry@netsolwater.com
